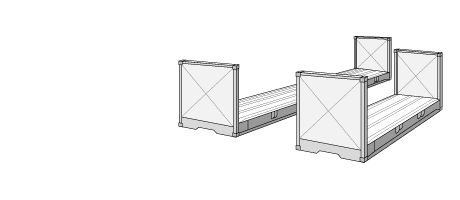

What is a flat rack container?
Flat rack containers are especially suitable for heavy loads and cargo that needs loading from the top or sides, such as pipes and machinery. You will find collapsible containers and non-collapsible containers with or without walls. Flat rack containers are manufactured from steel and come in 20' and 40' sizes.
FIND OUT IF YOUR GOODS WILL FIT
Flat rack container dimensions
Specific dimensions and capacity of flat rack containers (fr containers) may vary depending on the container manufacturer, the age of the container and the container owner. The specifications below are representative for the majority of flat rack containers.
20' flat rack container
| Tare weight | Payload capacity | Cubic capacity | Internal length |
|---|---|---|---|
| 2,360 kg | 30,140 kg |
32.7 m3 |
5.94 m |
| 5,203.8 lbs | 66,458.7 lbs |
1,154.3 cu ft |
19.5 ft |
| Internal width | Internal height | |||
|---|---|---|---|---|
| 2.35 m | 2.35 m |
|||
| 7.7 ft | 7.7 ft |
|||
40' flat rack container
| Tare weight | Payload capacity | Cubic capacity | Internal length |
|---|---|---|---|
| 5,000 kg | 40,000 kg |
62.2 m3 |
12.13 m |
| 11,025 lbs | 88,200 lbs |
2,195.7 cu ft |
39.8 ft |
| Internal width | Internal height | |||
|---|---|---|---|---|
| 2.40 m | 2.14 m |
|||
| 7.9 ft | 7 ft |
|||
